CC-2 Single Slab Instrumentation Plan

CC2 Phase II Instrumentation Plan




Back to CC2 Phase II Single Slab

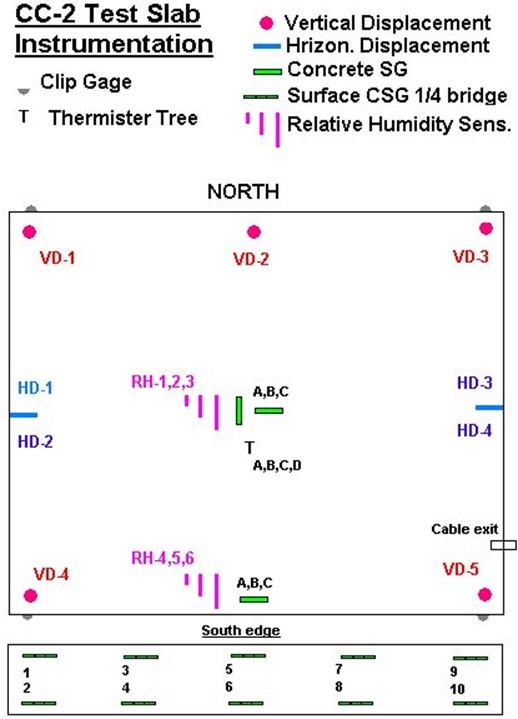

For characterization of PCC curling, sensors were installed in the PCC slab including: Vertical Displacement Transducers (VDT); Thermistor Tree (TT); Horizontal Displacement Transducers (HDT); Vertical Clip Gages (VCG); Concrete Strain Gages (CSG); and Relative Humidity Sensors (RHS). Click here to download CC2 Single Slab Sensor data spreadsheet.



CC2 pHASE II img2
