CC8 Phase 3 Joint Comparison Database Search
Refer to the table below for links to the following database searches for the CC8 Phase 3 Joint Comparison Test:
Track
Test items are trafficked using a defined wander pattern, with the carriage located at discrete lateral positions, or tracks.
The Track table lists the exact value of the carriage position relative to the center line for each track number. Refer to the diagram under “Wander” to better visualize the track locations.
Wander
The Wander table lists the loading sequence making up a complete wander pattern. Each wander sequence number is associated with a track position from the Track table.
Load Type
The Load Type table includes information about the configured wheel loads.
Test Item
The Test Item table includes engineering data about the CC8 Phase 3 Joint Comparison pavement test items (layer materials and thicknesses).
Traffic
The Traffic table includes all the information gathered during trafficking about the trafficking.
Sensor
The Sensor table includes information about the sensors, including sensor type and location.
Static Data
The Static Data table includes the static sensor data for a specific date.
Dynamic Data
Dynamic sensors are triggered by movements of the load vehicle. Therefore, dynamic sensor responses are collected only on days when the load vehicle is in operation. Dynamic sensor records are available for most passes of the load vehicle on the test items. However, some gaps in the data are known to exist. Click on the Dynamic Sensor Data link below to search the database for a particular dynamic sensor.
Load
The Load table includes the tire loading applied by the modules by the NAPTV onto the test section in pounds.
HWD
The HWD table includes the HWD deflection data collected throughout the course of trafficking.
Custom Query

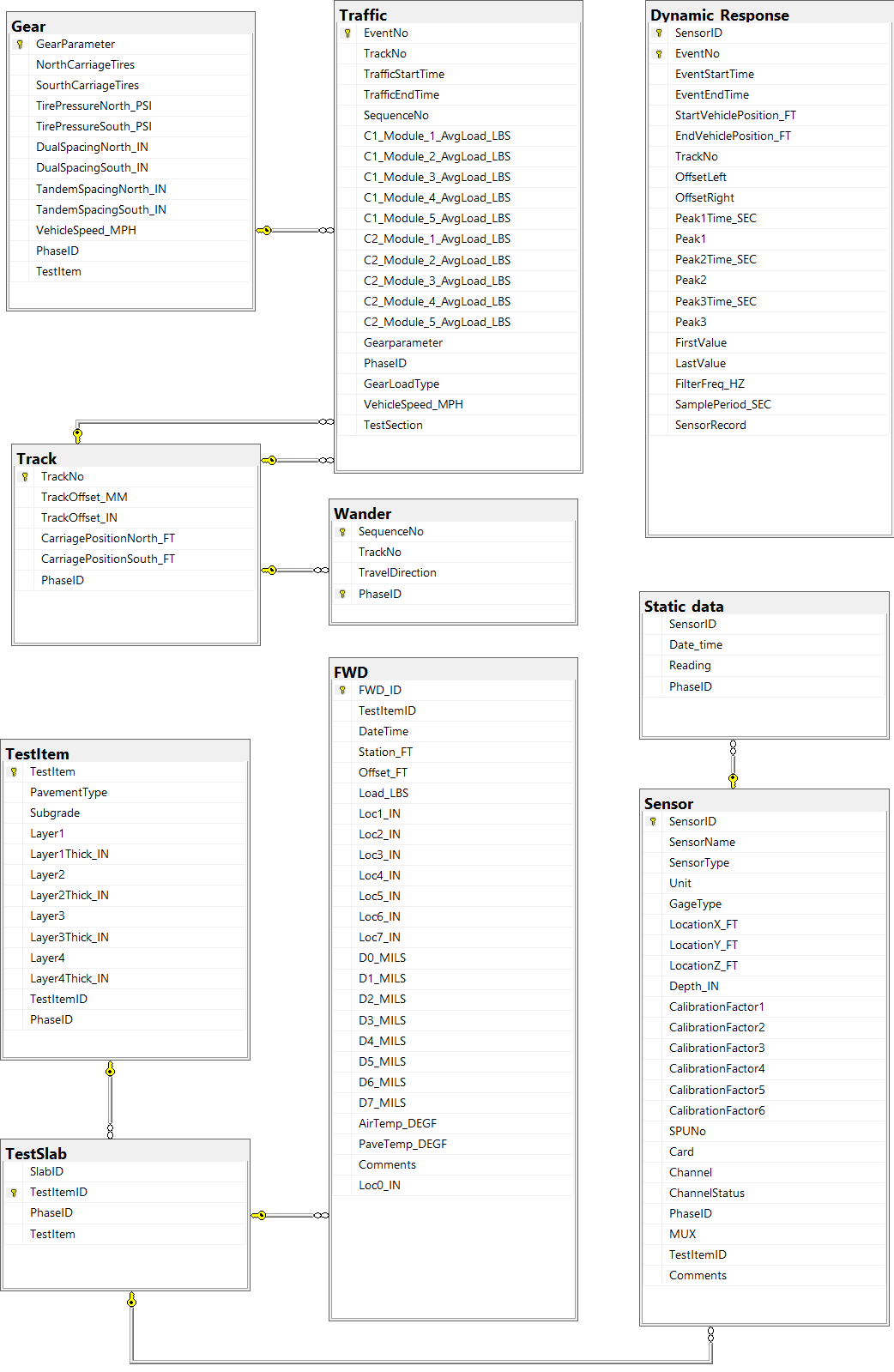

Advanced users may query the NAPTF database by Structured Query Language (SQL). Note that data are read-only. Only “select” queries will be recognized by the database. Refer to the table map when formulating queries. Additional details about the fields in each database table may be found by clicking on the appropriate link below.
Database Queries
Select from one of the following links to search the CC8 Phase 3 Joint Comparison Database:
